Ronford Backer Fluid 7 Head Hire

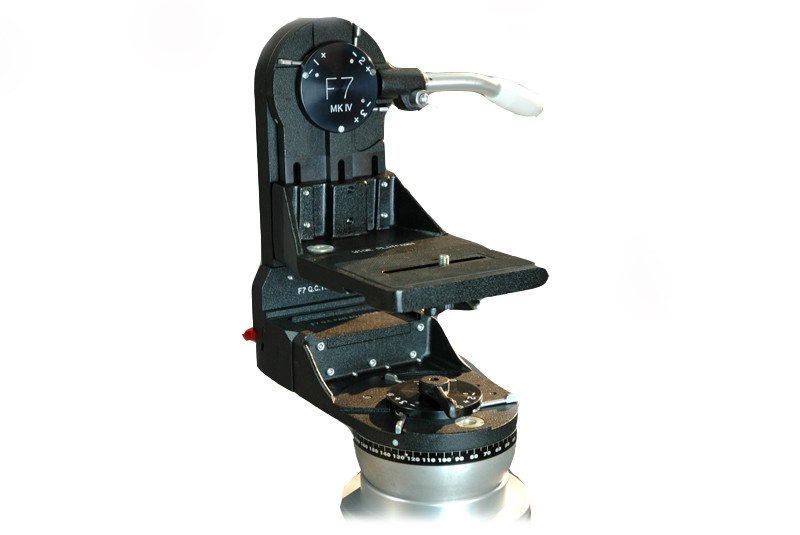

RONFORD BAKER Fluid 7 MKIV

Übersicht:

The Ronford-Baker Fluid 7 head is designed for use with film or video/EFP cameras. Its two sealed fluid units allow control to be varied through seven stages, from a cushioned free movement to the heaviest control required, by the use of three simple on/off levers. Both pan and tilt actions are continuous through 360 º, depending on the length of the lens and camera. The Fluid 7 can be supplied with a variety of platform widths, quick change spacing blocks and riser plates as illustrated. The platform is adjustable for height to suit the centre of gravity of the camera in use. A second pan bar of the platform, with ratchet adjustment to suit the required height.

Technical Specifications
Operation temperature range
+150ºF to -40ºF (+60ºC to -40ºC)
Weight: 17lb 14oz (8kg) standard

  • Fluid cushioned free head.
  • Sealed fluid system gives seven degrees of control in both pan and tilt.
  • Smooth accurate braking on pan and tilt.
  • Recessed circular spirit levels.
  • 360º scale on pan.
  • 150mm or Mitchell base, other fittings can be supplied on request.
  • Double taper roller bearings throughout.
  • Camera screw and platform adjust for vertical and horizontal balance.
  • Second pan bar available.

Transit Case
Rigidised aluminum to suit individual heads.


Features

The Ronford-Baker Fluid 7 head is designed for use with film or video/EFP cameras. Its two sealed fluid units allow control to be varied through seven stages, from a cushioned free movement to the heaviest control required, by the use of three simple on/off levers. Both pan and tilt actions are continuous through 360 º, depending on the length of the lens and camera. The Fluid 7 can be supplied with a variety of platform widths, quick change spacing blocks and riser plates as illustrated. The platform is adjustable for height to suit the centre of gravity of the camera in use. A second pan bar of the platform, with ratchet adjustment to suit the required height.


Technical Specifications
Operation temperature range
+150ºF to -40ºF (+60ºC to -40ºC)
Weight: 17lb 14oz (8kg) standard



  • Fluid cushioned free head.

  • Sealed fluid system gives seven degrees of control in both pan and tilt.

  • Smooth accurate braking on pan and tilt.

  • Recessed circular spirit levels.

  • 360º scale on pan.

  • 150mm or Mitchell base, other fittings can be supplied on request.

  • Double taper roller bearings throughout.

  • Camera screw and platform adjust for vertical and horizontal balance.

  • Second pan bar available.


Transit Case
Rigidised aluminum to suit individual heads.
