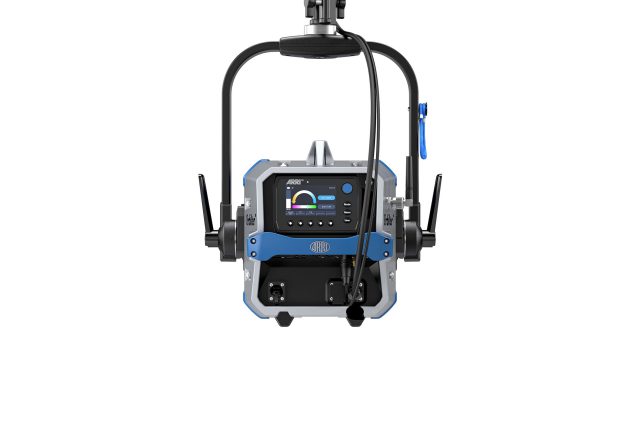

02_arri-orbiter-open-face-right

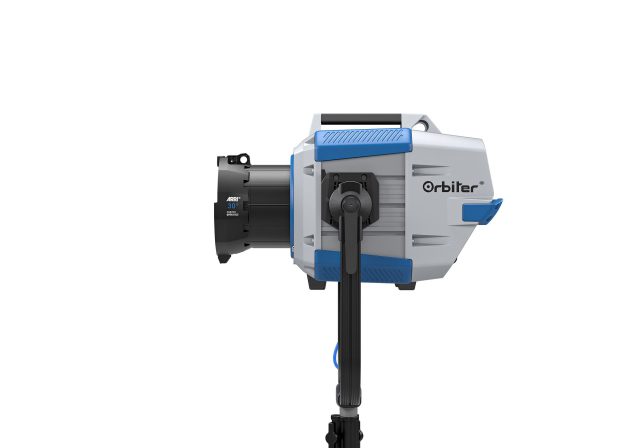

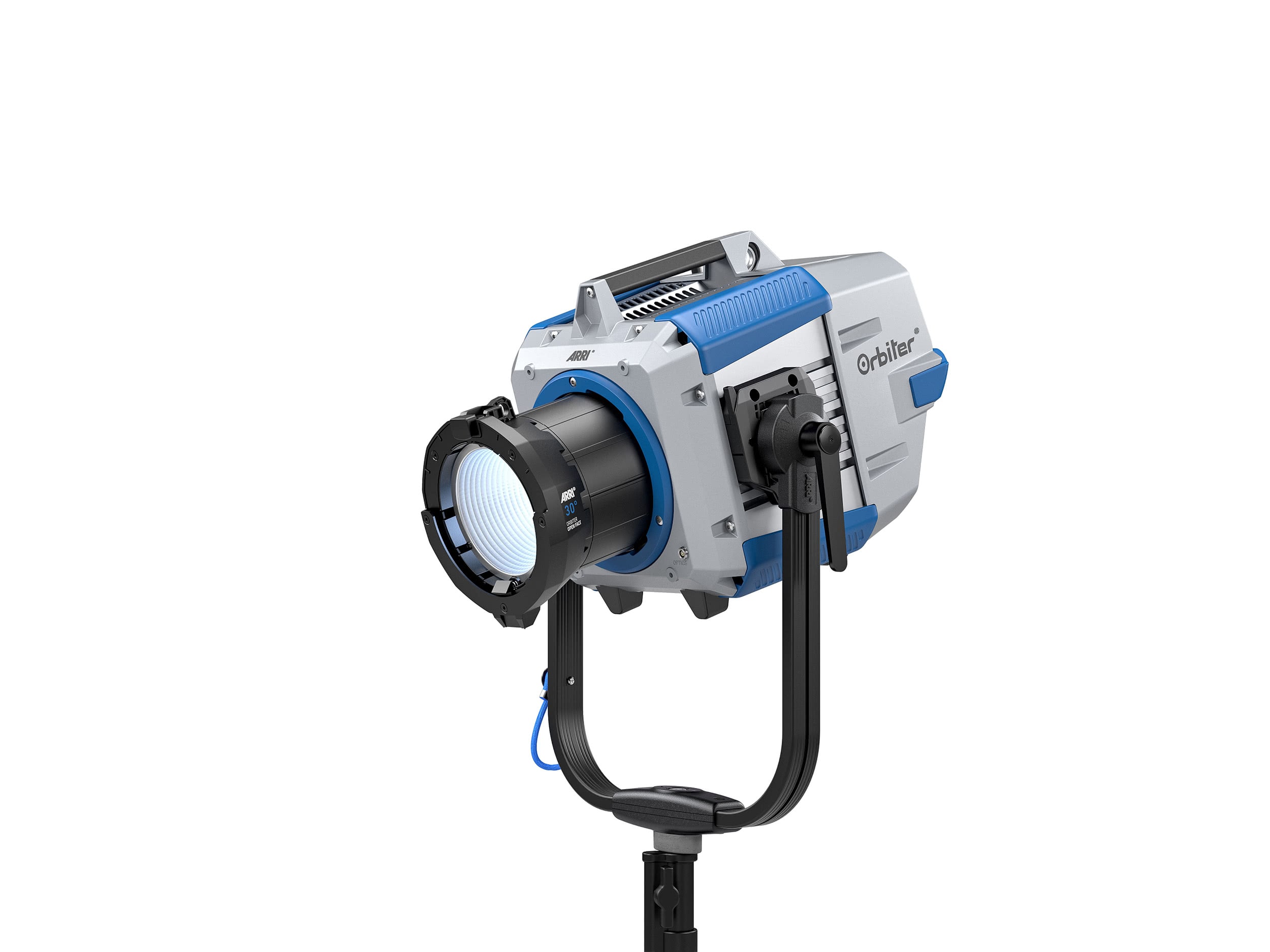

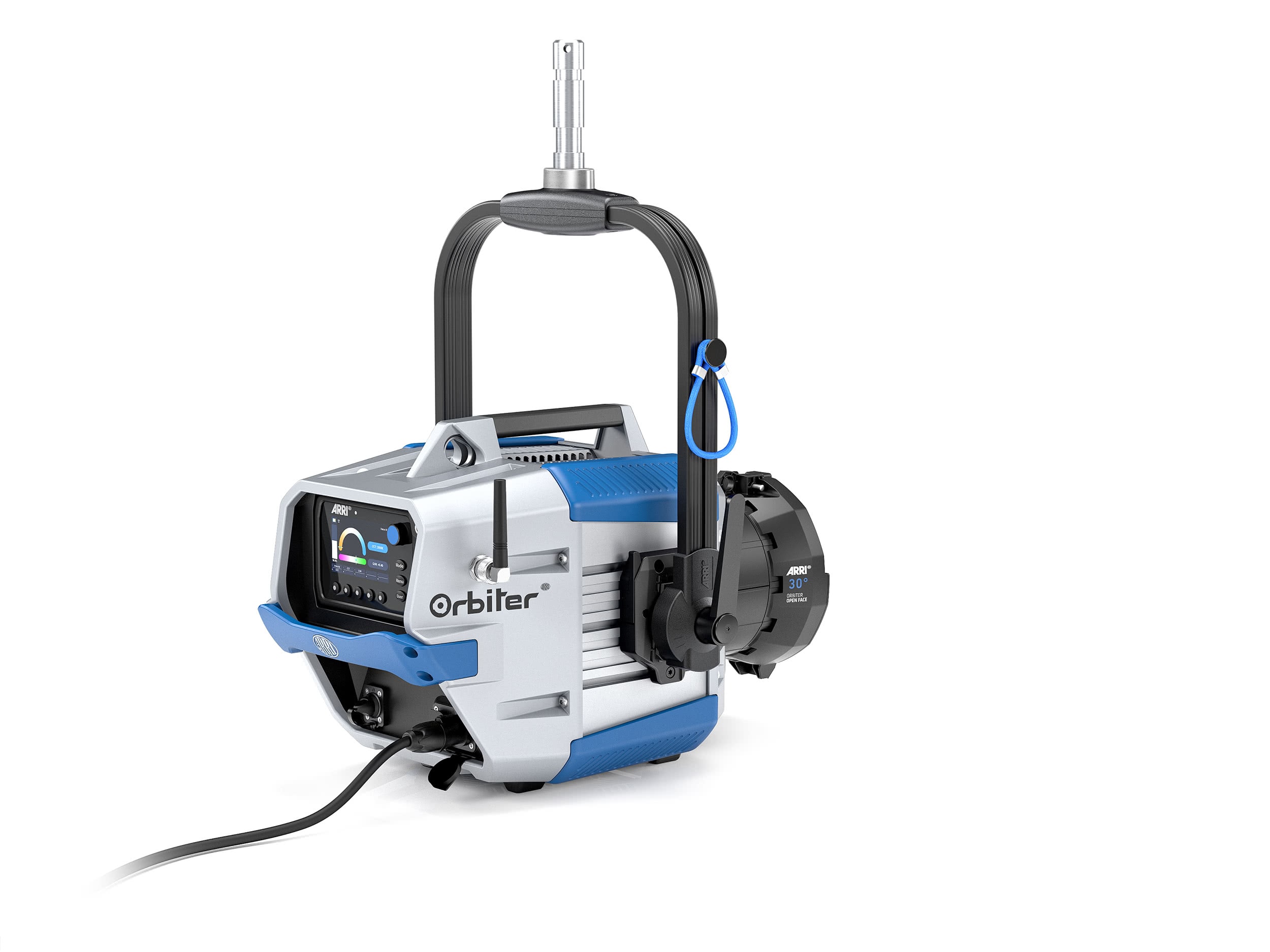

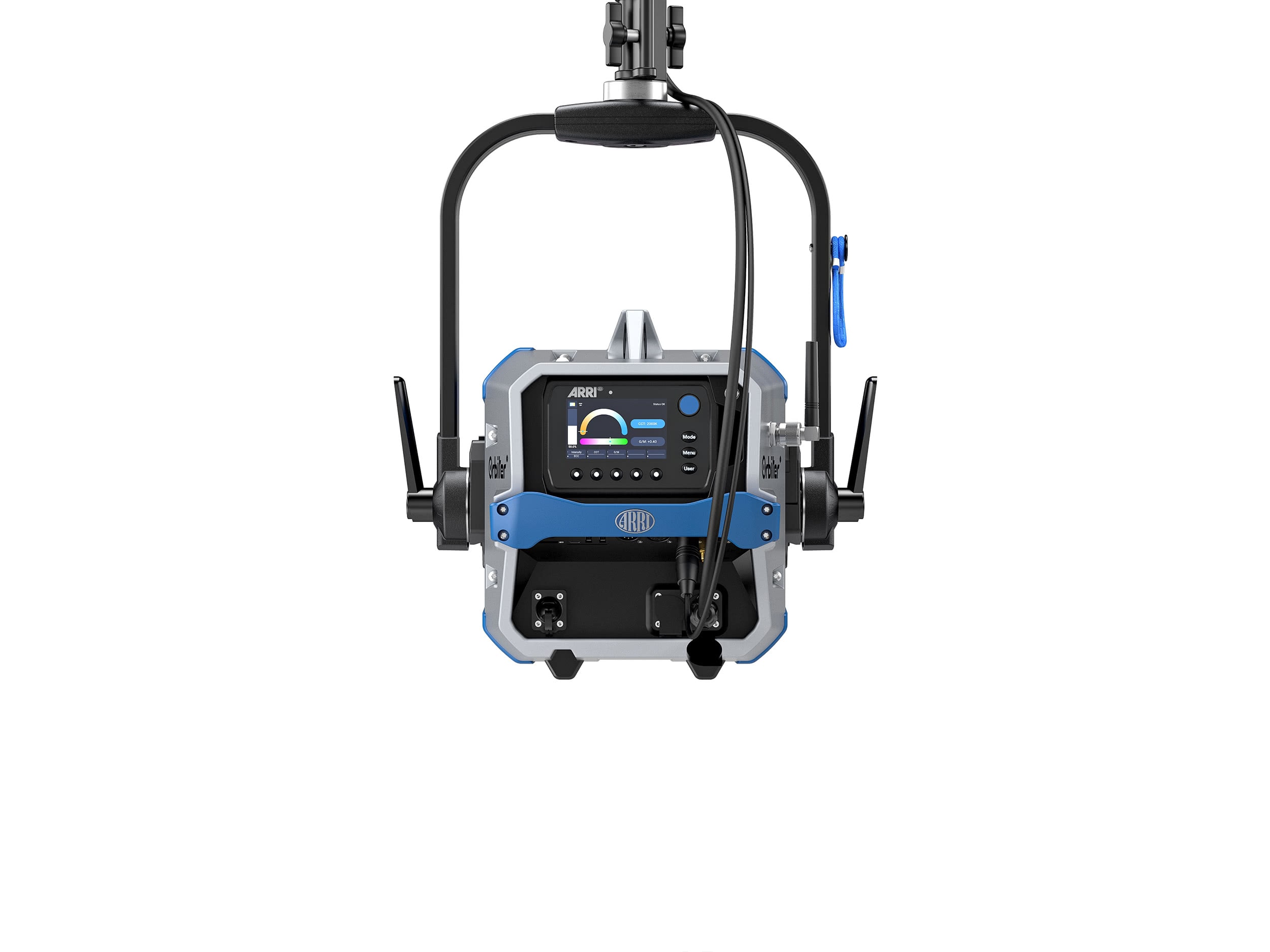

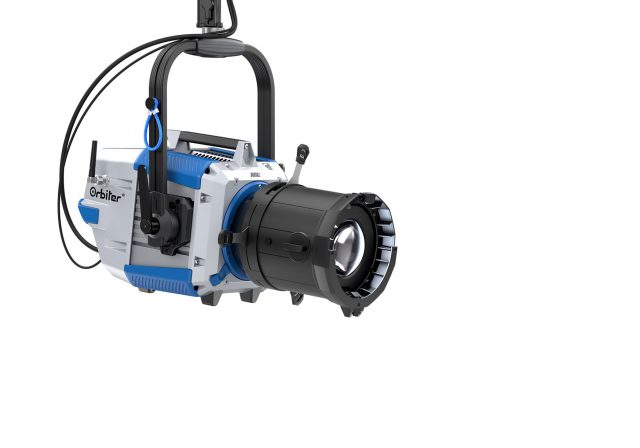

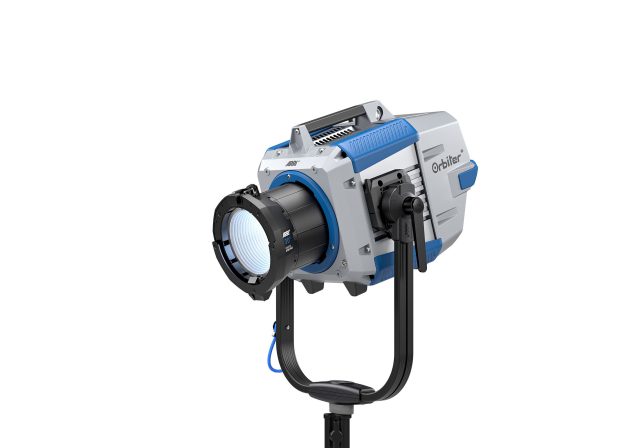

02_arri-orbiter-open-face-right 04_arri-orbiter-dome05_arri-orbiter-projection06_arri-orbiter-back07_arri-orbiter-open-face-30-left08_arri-orbiter-open-face-tilt09_arri-orbiter-open-face-table060

ARRI Orbiter

Übersicht:

Orbiter technical drawing

Optical System
Changeable optics

Light Aperture
42 mm / 1,66″, without optics

Beam Angle
80° Half Peak Angle, without optics

Weight
Fixture only: 11,7 kg / 25.8 lbs
Manual Version: 14,2 kg / 31.3 lbs
Pole Op Version: 14,9 kg / 32.9 lbs

Handling
Aluminum yoke with quick release, high strength tilt lock, pole operation option (pan and tilt)

Mounting
28 mm Spigot (Junior Pin)

Tilt Angle
+/-90° in dry location, +75° / -90° in wet location with rain cover

Voltage Input Range
100 – 240 V~, 50 – 60 Hz

Power Consumption
400 W Nominal, 500 W Maximum

Orbiter technical drawing

Mains Power Connection
powerCON TRUE1 TOP
(Bare Ends / Schuko / Edison, Japanese, Chinese cables available)

Battery Connector
3-Pin XLR Connector (Pin 1: negative, Pin 2: positive)

Battery DC Voltage Range
48 – 52 V⎓

White Light
calibrated 2,000 K to 20,000 K continuously variable correlated color temperature

Color Modes
CCT, HSI, individual color, gel selection, x/y coordinates, source matching, lighting effects, and color sensor mode

Color Temperature Tolerance
3,200 to 5,600 K: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)

High Color Rendition
3.200 to 5.600 K:
CRI Average > 98
TLCI Average > 95
TM-30 Average > 94

Green-Magenta Adjustment
Continuously adjustable between Full Minusgreen to Full Plusgreen

Dimming
Smooth, 100 – 0%, continuously, linear / exponential / logarithmic / „S“ curve

Connectivity
Removable Control Panel via PoE, 5-pin XLR in and through, EtherCON in and through, 2 x USB-A, USB-C, SD Card, Camera Sync Input

Control Options
Wireless control via LumenRadio CRMX* (DMX & RDM), Full E1.20 RDM standard implementation with custom & standard RDM commands

* Brand: LumenRadio AB, Equipment: CRMX TiMo, Model: 200-1502, Product: Orbiter 2.4G Wireless Control Module, Frequency Range: 2402 – 2480 MHz, Frequency of Operation: 2402 – 2480 MHz, Power Output: 17.51 dBm, Number of Channels: 79, Channel Spacing: 1 MHz, Modulation Type: GFSK

Housing Color
Blue/silver, Black

Ambient Temperature Operation
-20 to +45º C (-4 to +113º F)

Protection Class
I

IP Rating
IP 20 without Rain Cover, IP24 with Rain Cover L2.0037805

Estimated LED Lifetime (L70)
50,000 hours

Estimated Color Shift Over Lifetime (CCT)
+/- 5 %

Certifications
CE, CB, ENEC, cNRTLus, FCC, ICES, KC; pending: PSE, SRRC and more
