6x6 Multirotapol

Tiffen 6×6 MATTE BOX MULTI ROTA POL TRAY VARIABLE NEUTRAL DENSITY

Übersicht:

1. To use the MRT as a Rotating Circular Polarizer ONLY:
Face the filter tray „€œA-SIDE“€ towards the lens. Do not add the additional 4X—5.65 Circular Polarizer.

2. To use the MRT as a Variable Neutral Density (VND):
Place the „€œ4X5.65″€ filter into the (MRT) tray so that the engraving „FOR VND USE. THIS SIDE MUST FACE THE LENS“€ is readable. Now place the MRT into the Matte Box / Sunshade. The MRT will now work as a VND in this configuration.
You can now rotate the geared wheel to review. Please use the Alpha markings on the gear ring and the engraved + / -€“ on the „€œA-FACE“€ of the tray as a guide to increase or decrease the effect.
Please be advised that the amount of light reduction the MRT can cut, when set up as a VND is focal length dependent. Always check for edge of frame for vignetting and in extreme cases for a dark cross in the center of your frame.
The best way to look for possible vignetting and uneven transmission in your image, is to use a waveform monitor and a solid grey card. Evenly illuminate the grey card making sure the card covers the entire image area of the lens. Any uneven variance in light transmission will show up as you rotate the gear on the monitor.
3. To use as a Warm/Cool FX:
Place the „€œ4X5.65″€ filter into the (MRT) tray so that the engraving „FOR WARM / COOL USE. THIS SIDE MUST FACE THE LENS“€ is readable. Now place the MRT into the Matte Box / Sunshade. The MRT will now work as a WARM / COOL FX in this configuration.
You can now rotate the geared wheel to review. Please use the Alpha markings on the gear ring and the engraved + / -€“ on the „€œA-FACE“€ of the tray as a guide to increase or decrease the effect.

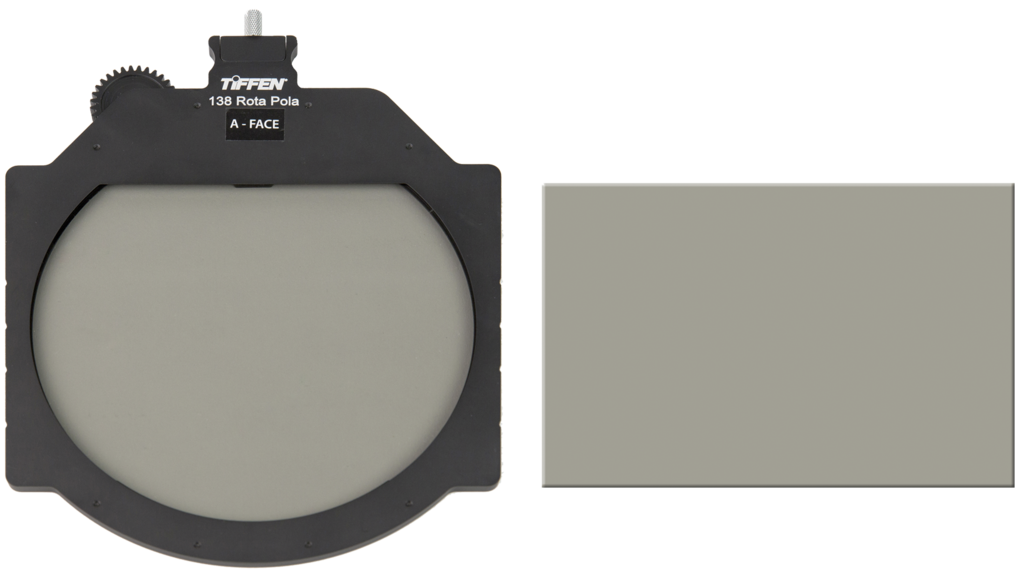

 Multi Rota Tray (MRT)

The Tiffen Multi Rota Tray (MRT) is a geared rotating tray that allows the use and rotation of a 138mm Circular Polarizer and Variable ND in a 4x—5.650 tray and is ideal for matte boxes without a rotating filter stage or for those instances where a secondary rotating filter stage is required in a non-rotating stage.
The Tiffen Multi Rota Tray is designed to fit into a variety of Matte Boxes which conform to ARRI R2 design standards.
– Available in 3 filter configurations with up to 3 distinct filter effects in one unit
– Up to 6-stop (focal length dependent) of Tiffen VND* (Variable Neutral Density) with M8 geared ring for ease of use, minimum of 2-stops
– Geared 138mm ultra thin Circular Polarizer for greater field of view, when used without combined 4×5.650 Circular Polarizer
– Patented quick release removable 4×5.650 ultra thin Circular Polarizer, when combined with 138mm ultra thin geared Circular Polarizer,
will produce a Variable ND or Cool to Warm FX color effect
– Built into a single 6mm tray. Designed to be used with Sunshades and Matte boxes from ARRI®, B
TLS Optics, Vocas and more
– Geared adjustment for precision exposure for control by hand or industry standard M8 gear wheel
– Uses only one tray space in Matte Box/Clip On Sun Shade, allowing the use of second filter tray
– Tray engravings provide easy positioning
– Includes  protective case

– Easy-to-follow quick reference guide included


Features

1. To use the MRT as a Rotating Circular Polarizer ONLY:

  • Face the filter tray &8222;€œA-SIDE&8220;€ towards the lens. Do not add the additional 4X—5.65 Circular Polarizer.


  • 2. To use the MRT as a Variable Neutral Density (VND):

  • Place the &8222;€œ4X5.65&8243;€ filter into the (MRT) tray so that the engraving &8222;FOR VND USE. THIS SIDE MUST FACE THE LENS&8220;€ is readable. Now place the MRT into the Matte Box / Sunshade. The MRT will now work as a VND in this configuration.
  • You can now rotate the geared wheel to review. Please use the Alpha markings on the gear ring and the engraved + / -€“ on the &8222;€œA-FACE&8220;€ of the tray as a guide to increase or decrease the effect.

  • Please be advised that the amount of light reduction the MRT can cut, when set up as a VND is focal length dependent. Always check for edge of frame for vignetting and in extreme cases for a dark cross in the center of your frame.

    The best way to look for possible vignetting and uneven transmission in your image, is to use a waveform monitor and a solid grey card. Evenly illuminate the grey card making sure the card covers the entire image area of the lens. Any uneven variance in light transmission will show up as you rotate the gear on the monitor.


    3. To use as a Warm/Cool FX:

  • Place the &8222;€œ4X5.65&8243;€ filter into the (MRT) tray so that the engraving &8222;FOR WARM / COOL USE. THIS SIDE MUST FACE THE LENS&8220;€ is readable. Now place the MRT into the Matte Box / Sunshade. The MRT will now work as a WARM / COOL FX in this configuration.
  • You can now rotate the geared wheel to review. Please use the Alpha markings on the gear ring and the engraved + / -€“ on the &8222;€œA-FACE&8220;€ of the tray as a guide to increase or decrease the effect.
  •  Multi Rota Tray (MRT)



    The Tiffen Multi Rota Tray (MRT) is a geared rotating tray that allows the use and rotation of a 138mm Circular Polarizer and Variable ND in a 4x—5.650 tray and is ideal for matte boxes without a rotating filter stage or for those instances where a secondary rotating filter stage is required in a non-rotating stage.


    The Tiffen Multi Rota Tray is designed to fit into a variety of Matte Boxes which conform to ARRI R2 design standards.


  • &8211; Available in 3 filter configurations with up to 3 distinct filter effects in one unit
  • &8211; Up to 6-stop (focal length dependent) of Tiffen VND* (Variable Neutral Density) with M8 geared ring for ease of use, minimum of 2-stops
  • &8211; Geared 138mm ultra thin Circular Polarizer for greater field of view, when used without combined 4&215;5.650 Circular Polarizer
  • &8211; Patented quick release removable 4&215;5.650 ultra thin Circular Polarizer, when combined with 138mm ultra thin geared Circular Polarizer,
  • will produce a Variable ND or Cool to Warm FX color effect

  • &8211; Built into a single 6mm tray. Designed to be used with Sunshades and Matte boxes from ARRI®, Bright Tangerine, Chrosziel®, Movcam,
  • TLS Optics, Vocas and more

  • &8211; Geared adjustment for precision exposure for control by hand or industry standard M8 gear wheel
  • &8211; Uses only one tray space in Matte Box/Clip On Sun Shade, allowing the use of second filter tray
  • &8211; Tray engravings provide easy positioning
  • &8211; Includes  protective case
  • &8211; Easy-to-follow quick reference guide included
